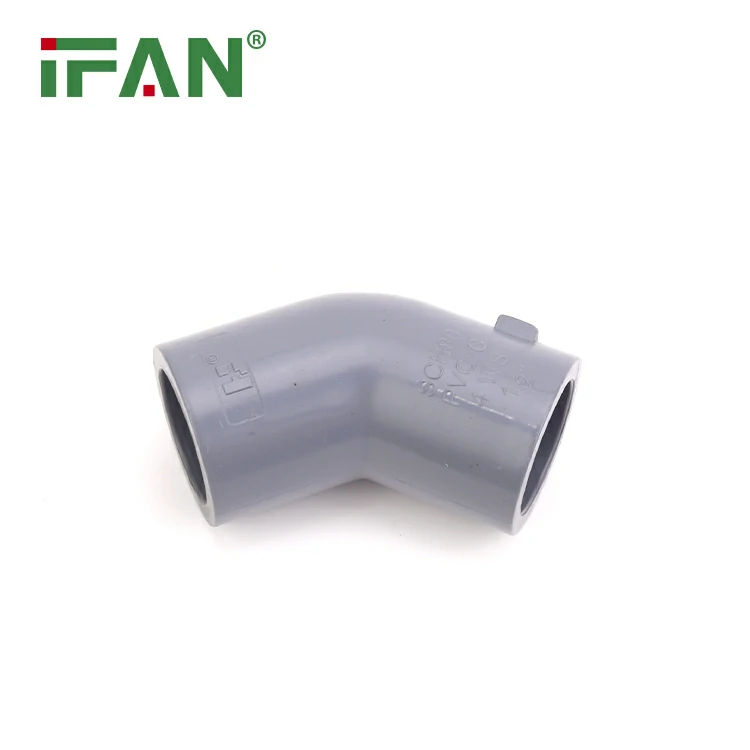

IFAN SCH80 CPVC 45° Elbow

The IFAN SCH80 CPVC 45° Elbow is a fitting designed for use in CPVC piping systems, specifically for Schedule 80 pipes. It is used to change the direction of the pipeline by 45 degrees. Here’s a detailed overview of this fitting:

Key Features

1. Material: Made from Chlorinated Polyvinyl Chloride (CPVC), which is highly durable, corrosion-resistant, and suitable for both hot and cold water applications.
2. Pressure Rating: Designed for Schedule 80 pipes, which have thicker walls and can handle higher pressure compared to Schedule 40.
3. Temperature Resistance: CPVC can withstand temperatures up to 200°F (93°C), making it ideal for hot water systems.
4. Standards Compliance: Likely complies with international standards such as ASTM F438 (for CPVC fittings) and NSF/ANSI 61 (for potable water safety).
5. Connection Type: Typically uses solvent cement for a strong, leak-proof joint.

Applications:

• Plumbing Systems: Used in residential, commercial, and industrial plumbing to change the direction of water flow.
• Hot and Cold Water Distribution: Suitable for both hot and cold water systems due to CPVC’s temperature resistance.
• Industrial Piping: Used in chemical processing and other industrial applications where corrosion resistance is critical.
• Fire Sprinkler Systems: Often used in fire protection systems due to CPVC’s durability and safety.

Advantages:

• Corrosion Resistance
• Lightweight
• Longevity
• Safety

Installation Guidelines:

1. Cutting: Ensure the pipe ends are cut cleanly and deburred.
2. Primer and Cement: Use a CPVC primer and solvent cement specifically designed for CPVC materials.
3. Joining: Apply primer to the pipe and fitting, then apply solvent cement and quickly join the pipe and elbow. Hold firmly for a few seconds to ensure a strong bond.
4. Curing Time: Allow adequate curing time as per the solvent cement manufacturer’s instructions before pressurizing the system.

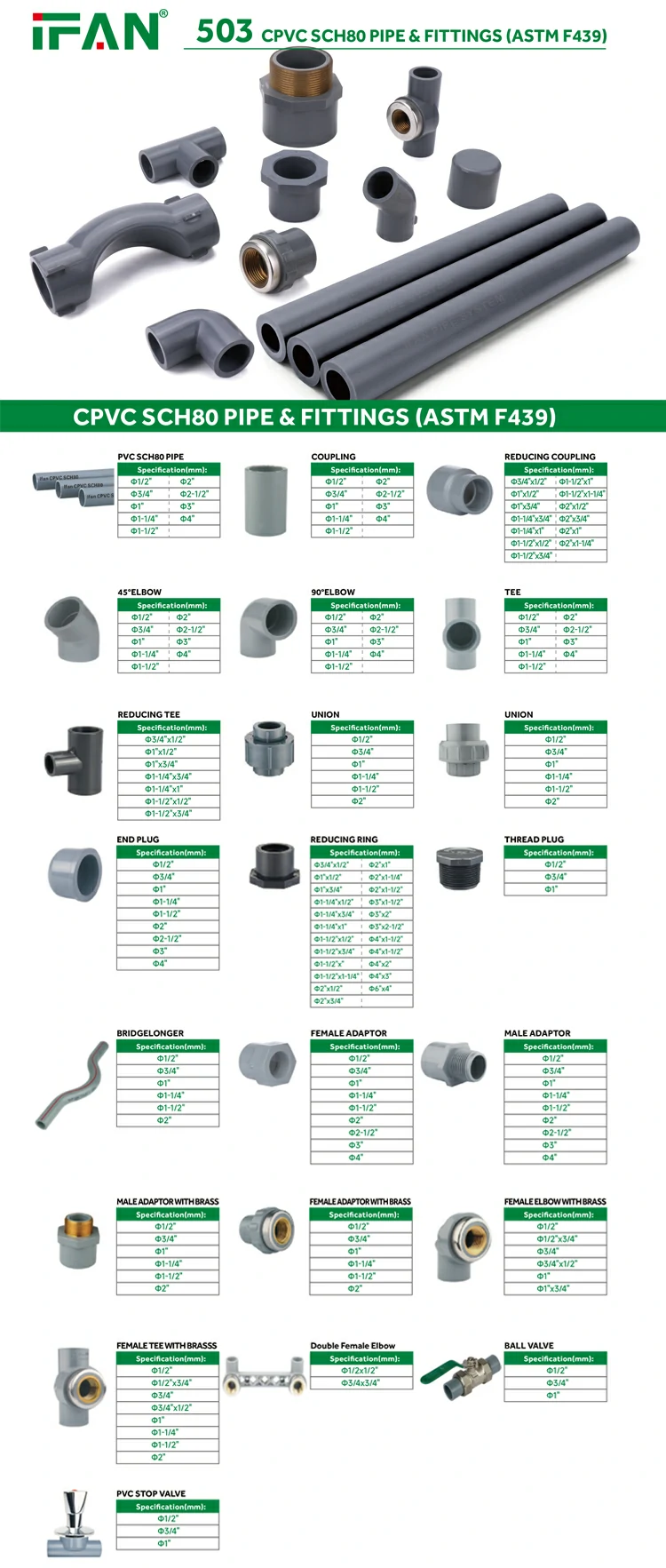

Sizes Available:

IFAN SCH80 CPVC 45° Elbows are typically available in a range of sizes, such as:

• 1/2 inch (15mm)
• 3/4 inch (20mm)
• 1 inch (25mm)
• 1.5 inches (40mm)
• 2 inches (50mm)
• And larger sizes depending on the application.

IFAN SCH80 CPVC 45° Elbows are a reliable and efficient solution for changing the direction of CPVC piping systems. They are widely used in plumbing, industrial, and fire protection systems due to their durability, ease of installation, and compliance with safety standards. Always verify the product specifications and ensure compatibility with your specific application.
