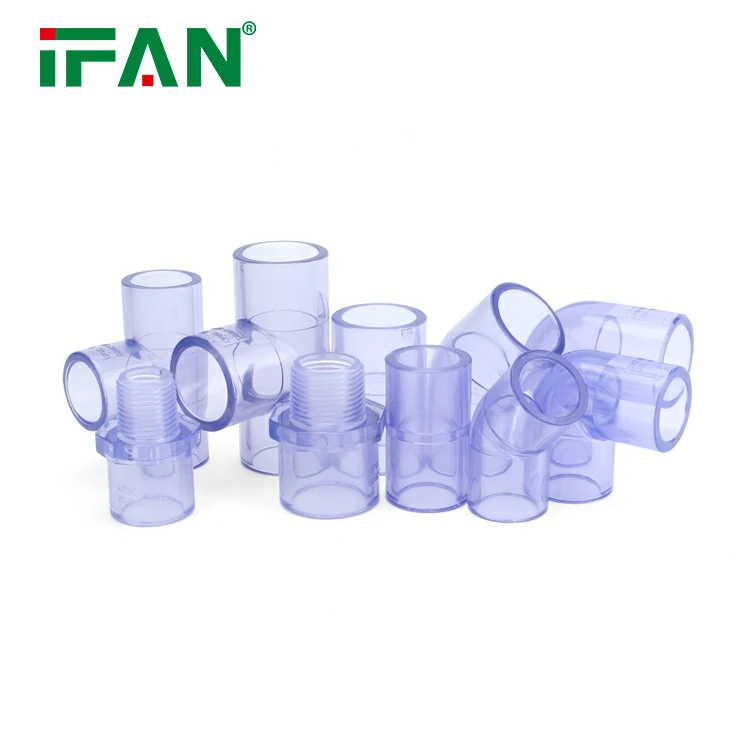

IFAN Custom Transparent PVC Pipe Fittings

Strength is a critical property for any component. Transparent PVC Pipe Fittings possess good mechanical strength. However, their strength has specific limits. It is comparable to standard white Schedule 40 PVC. Understanding these limits ensures safe application.

Defining Strength: Key Metrics

Strength is measured in several ways. Tensile strength resists pulling apart. Impact strength withstands sudden blows. Pressure strength contains internal force. Each metric is important for different situations.

Tensile Strength and Resistance

Tensile strength is typically high. It can range from 7,000 to 8,000 psi. This means they resist stretching forces well. They are strong under axial load. This is vital for pressurized systems.

Impact Strength and Brittleness

Impact strength is moderate. They can withstand minor impacts. However, they become brittle in cold weather. A sharp blow at low temperatures may cause cracking. This is a key consideration for outdoor use.

Pressure Rating and Hydrostatic Strength

Their pressure rating is clearly defined. Most are rated for 150 PSI at 73°F. This is a common rating for Schedule 40 systems. The strength decreases as temperature rises. Always check the manufacturer’s stamped rating.

Comparison to Opaque PVC Fittings

Their strength is very similar to white PVC. The clarity additives have a minor effect. In most cases, the difference is negligible. The same design rules and safety factors apply.

The Influence of Temperature

Temperature drastically affects strength. At 100°F, the pressure rating may drop by 50%. High temperatures soften the material. Cold temperatures increase brittleness. Operating within the temperature range is crucial.

The Role of Chemical Exposure

Chemical exposure can weaken the material. Some solvents can cause environmental stress cracking. This significantly reduces overall strength. Always check chemical compatibility charts. Avoid incompatible fluids.

Strength of the Solvent-Weld Joint

The joint is often the strongest point. A properly made solvent-weld joint is monolithic. It can be as strong as the pipe itself. A poor joint is the weakest link. Proper installation is paramount.

Long-Term Strength and Creep Resistance

PVC is subject to creep under constant load. This is a slow deformation over time. Transparent PVC Pipe Fittings have good creep resistance. For continuous pressure, use a safety factor. Do not exceed 50% of the rated pressure.

Testing for Strength and Reliability

Manufacturers perform rigorous tests. These include hydrostatic burst tests. Pressure is increased until failure. Products are certified to meet standards. Look for NSF, UL, or ASTM certifications.

Real-World Applications and Strength

They are strong enough for many applications. These include residential water systems. They work well in aquarium plumbing. They are suitable for low-pressure chemical lines. They are not for high-pressure hydraulics.

Conclusion: Strong Within Limits

Transparent PVC Pipe Fittings are sufficiently strong. Their strength is well-defined and reliable. They excel in low to medium pressure applications. Understanding their limits is key to safe use. Always respect temperature and pressure ratings. When used correctly, they provide durable and reliable service.
