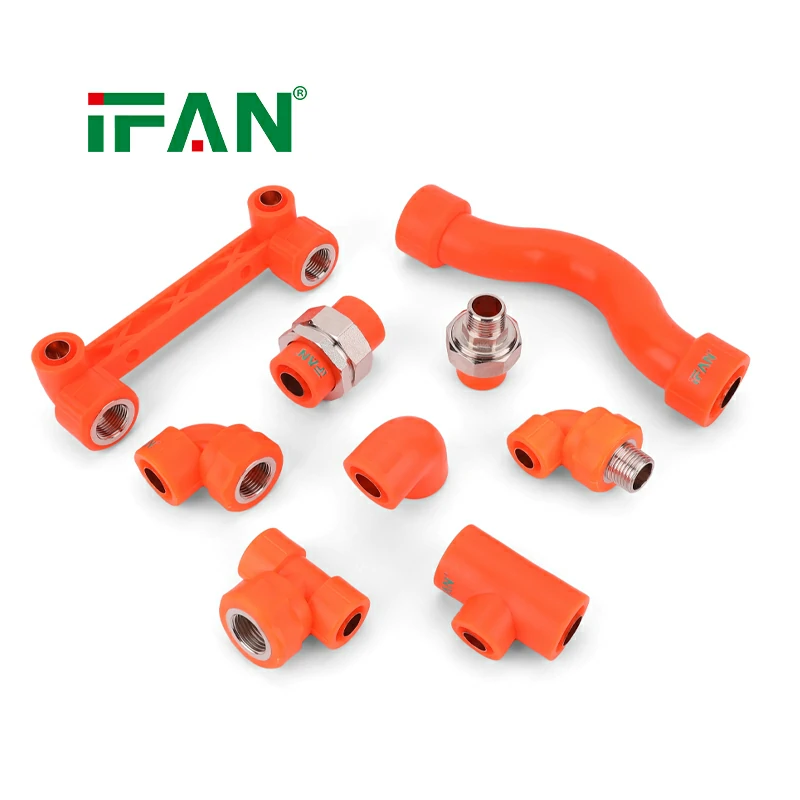

IFAN Durable PPR Copper Fittings

Yes, they are fully suitable

PPR copper fittings work for hot and cold water systems. The PPR side handles up to 95°C. The copper side handles much higher temperatures. Example: the same fitting serves hot and cold lines.

PPR side temperature limit

Standard PPR material handles 95°C continuously. Short-term spikes up to 110°C are acceptable. This covers all residential hot water needs. PPR copper fittings meet these temperature requirements easily.

Copper side has no issues

Copper handles 200°C without any problems. Domestic water never reaches that temperature. The copper part of the fitting is not the limit. PPR copper fittings are limited only by the plastic side.

Cold water performance

PPR fittings perform excellently in cold applications. The material does not become brittle at low temperatures. It maintains full strength and sealing integrity. PPR copper fittings are certified for cold water service.

Example: residential hot water supply

A water heater delivers 140°F (60°C) water. PPR copper fittings connect the heater to PEX pipes. The fitting handles the heat without any issues. Example: the system runs safely for decades.

Example: cold water main line

A house main supply is 55°F from the street. All cold water branch lines use PPR copper fittings. The fittings show no degradation from cold temperatures. Example: a reliable connection for the entire cold water system.

Hydronic heating systems

Radiant floor heating runs at 100-140°F. These temperatures are well within the fitting’s range. Polypropylene-Random copper fittings are approved for hydronic heating. Example: warm floors use them for reliable operation.

Pressure rating at high temperatures

At 95°C, the pressure rating is 100 psi (6.9 bar). At 20°C, the rating is much higher at 160 psi. This is standard for PPR pipe systems. PPR copper fittings follow the same derating curve as the pipe.

DZR brass for hot water

DZR brass resists corrosion in hot water conditions. Standard brass can dezincify over time in hot water. Polypropylene-Random copper fittings with DZR brass are preferred for hot water.

Lead-free versions for drinking water

Drinking water systems need NSF/ANSI 61 certification. Lead-free DZR brass fittings meet this standard. Polypropylene-Random copper fittings are available in lead-free versions for potable water.

Limitations to remember

Do not use PPR copper fittings for steam systems. Steam exceeds 100°C, above the PPR limit. Do not exceed 95°C for continuous operation. Polypropylene-Random copper fittings are not for all high-temperature applications.

Final suitability summary

Polypropylene-Random copper fittings are suitable for both hot and cold water systems. The PPR side handles up to 95°C and 100 psi. The copper side has no practical temperature limit. This covers all residential hot water, cold water, and hydronic heating applications. For potable water, choose lead-free DZR brass versions. Avoid steam and temperatures above 100°C. With proper selection and installation, these fittings provide decades of reliable service. Example: a versatile choice for any residential plumbing system.
