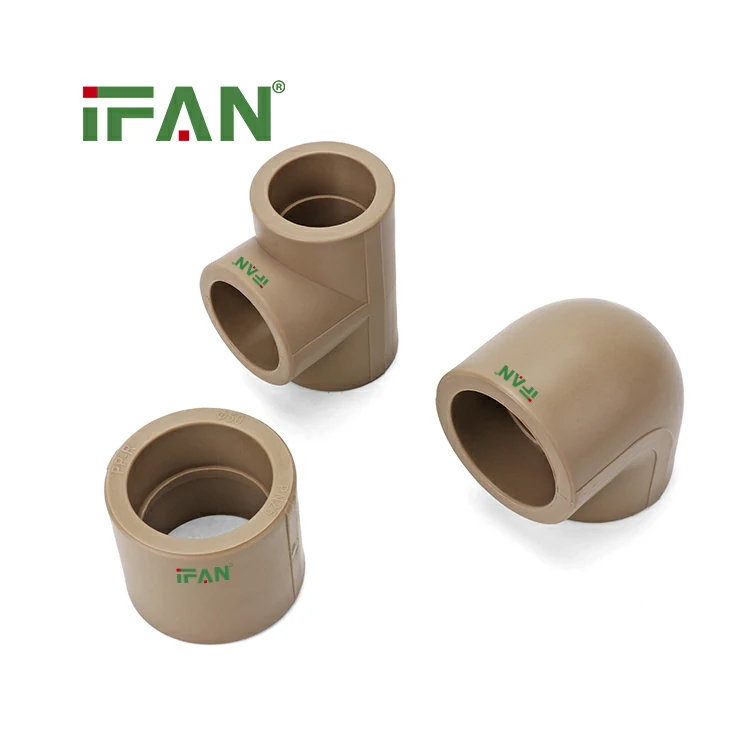

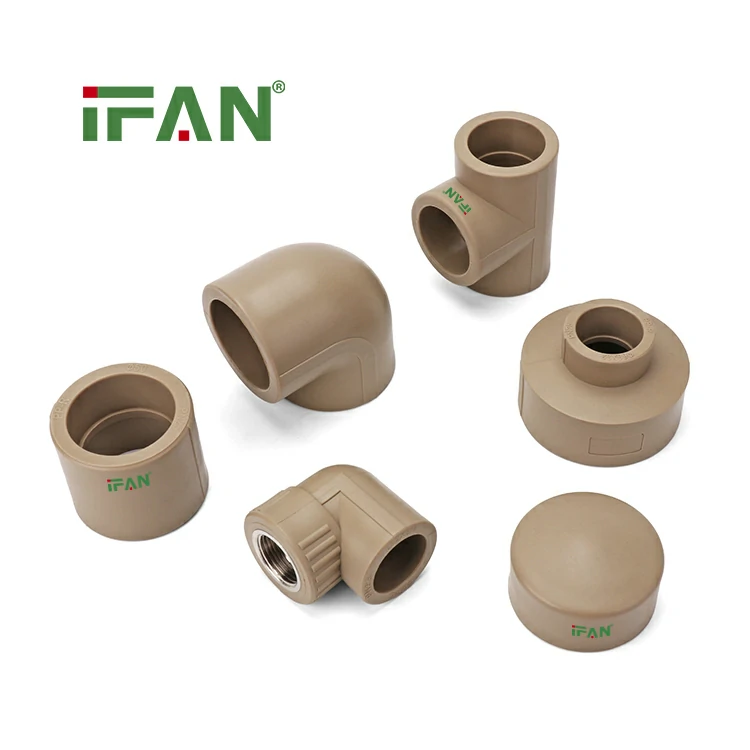

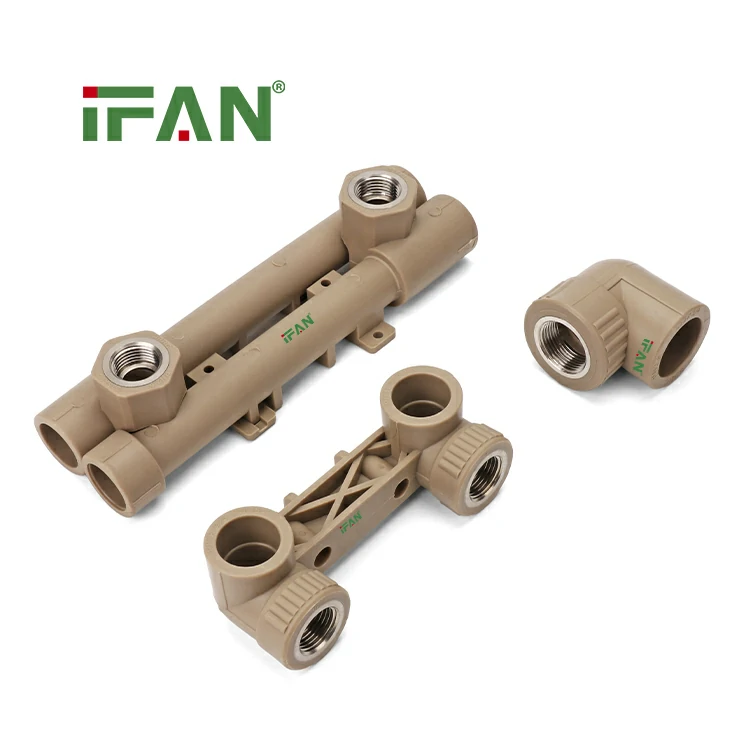

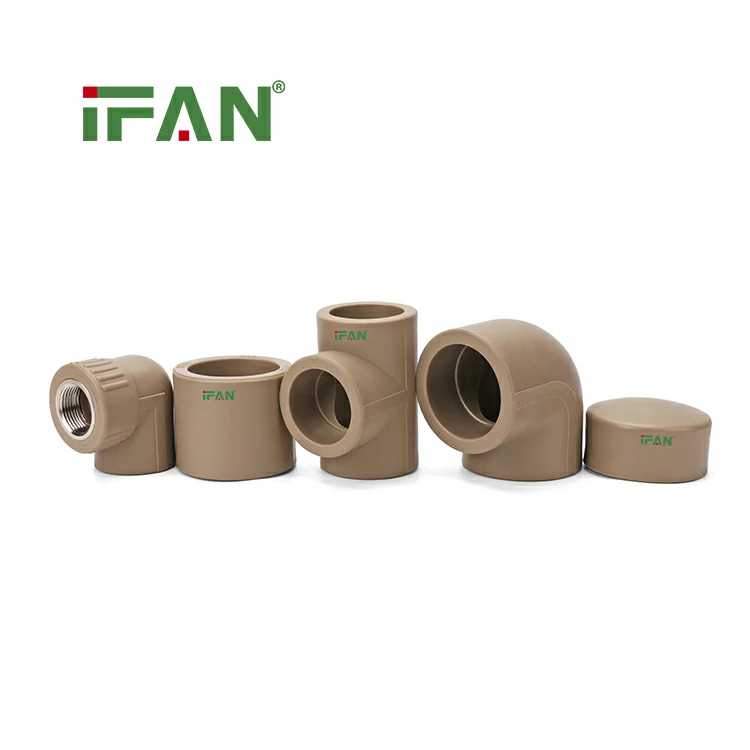

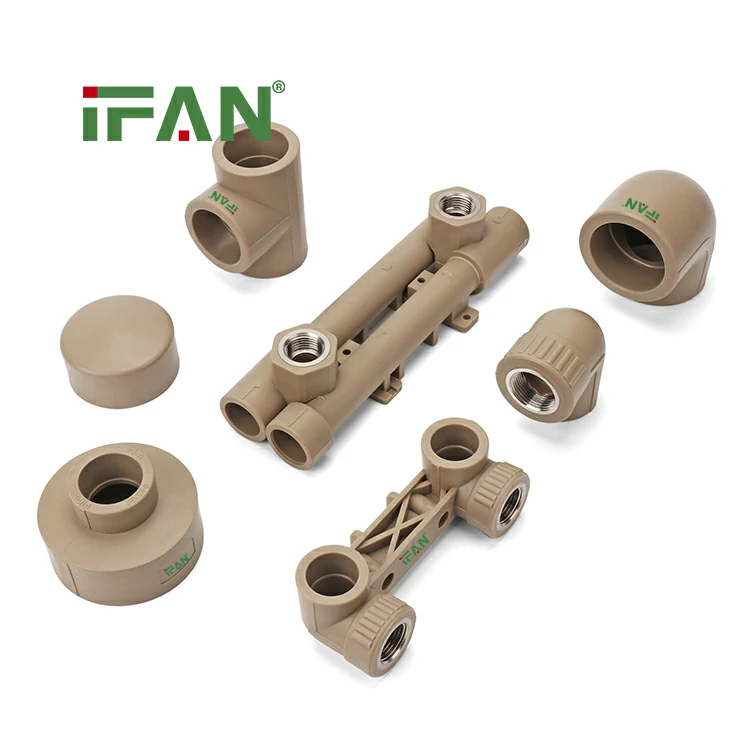

IFAN Economy Quality PPR Pipe Fittings

Introduction to the Application

PPR pipe fittings are common in water systems. Their use in compressed air is different. Compressed air operates at high pressure. It also generates significant heat. The material must handle these conditions safely. Understanding the risks is essential.

Manufacturer Specifications and Approvals

Some PPR systems are rated for compressed air. For example, Greenfit Blue PPRC pipes are designed for pneumatic applications . These products meet specific industrial standards. Always check the manufacturer’s approval first. Not all PPR is created equal for this use.

Pressure and Temperature Ratings

Compressed air systems require careful rating checks. One source notes a maximum of 20 bar at 20°C . Another indicates 160 psi at 73°F for cold water . At higher temperatures, the pressure capacity drops significantly. This derating is critical for safe operation.

The Challenge of Heat Generation

Compressed air becomes hot during pressurization. The temperature can exceed ambient levels. PPR pipes have reduced pressure capacity at elevated temperatures. For example, at 82°C, the rating may drop to 690 kPa (100 psi) from 1105 kPa at 23°C . This thermal effect cannot be ignored.

Safety Concerns with Plastic Fragmentation

OSHA has issued specific guidance on plastic pipes. Thermoplastic pipes for compressed air must be shatter-resistant . Some plastics, like PVC, fail in a catastrophic manner. They can explode and send sharp fragments flying. Polypropylene can also become brittle in cold conditions .

Selecting the Correct PPR Type

PPR is a thermoplastic with variable performance. Its mechanical properties change with temperature. In cold environments, it can become brittle and shatter . A ductile material is safer for compressed air. It will tear or bulge before bursting. This gives warning before catastrophic failure .

Proper Jointing Techniques

PPR pipes are typically joined by heat fusion. This creates a monolithic, homogenous joint . This method is leak-proof and strong. However, threaded fittings present risks. An Australian safety alert described a failure with polypropylene threaded fittings . The cause was under-rating and improper installation. Threaded joints concentrate stress.

Support and Expansion Management

PPR has a high coefficient of thermal expansion. Temperature cycles from compressed air cause movement. Proper support spacing is crucial, typically 0.5 to 1.5 meters . Expansion loops or offsets must be included. Without these, joints and fittings experience excessive stress.

Testing and Safety Verification

Systems must be pressure tested before operation. Hydrostatic testing with water is the safest method. It stores less energy than compressed gas . Pneumatic testing with air requires strict safety zones. Gradual pressure increases and monitoring are required .

Alternatives to PPR for Compressed Air

Metal pipes remain the traditional standard. Stainless steel and brass offer high strength . They do not have UV or temperature limitations. HDPE is another plastic option. It retains ductility at low temperatures and fails safely .

Manufacturer-Specific Recommendations

Some brands produce specialized PPR systems. The COPRAX system by Hafner is designed for compressed air . Asahi/America also offers specific PPR-based solutions . You must rely on the manufacturer’s data sheet. Do not guess based on appearance.

Conclusion on Suitability

PPR pipe fittings can be used for compressed air, but only under strict conditions. They must be specifically rated by the manufacturer for air service. System pressure and temperature must be carefully managed. Proper installation, support, and testing are mandatory. For high-risk or cold environments, HDPE or metal alternatives are safer choices . When in doubt, consult an engineer and prioritize safety over material convenience.
