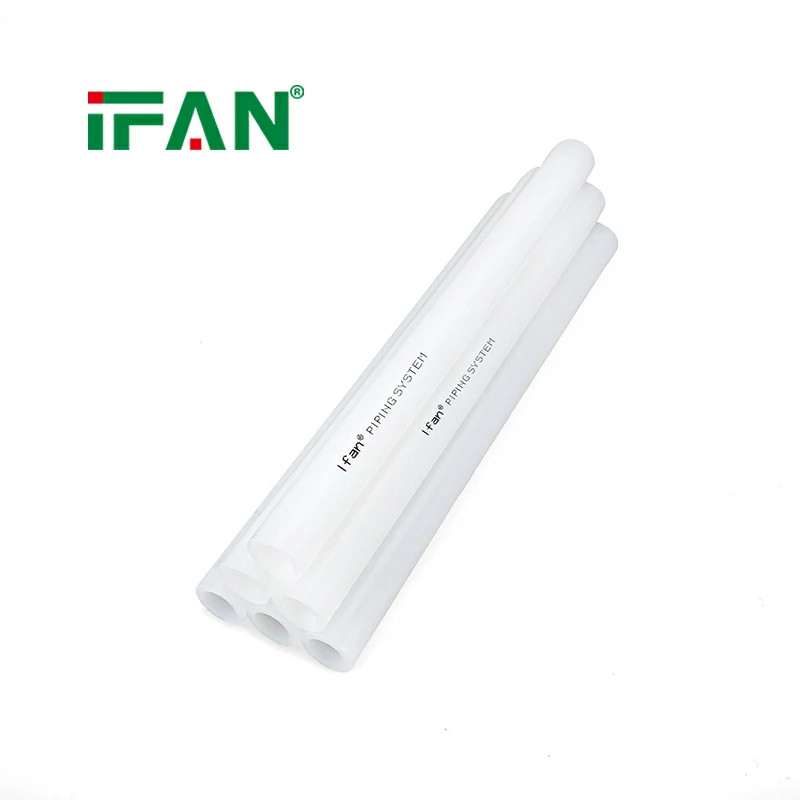

IFAN Full Sizes PEX-EVOH Pipes

Typical lifespan is 50+ years

PEX-EVOH pipes generally last 50 years or more. This matches the expected life of standard PEX. The EVOH barrier does not reduce longevity. Example: a system installed in 1985 still works today.

PPR side determines lifespan

The PEX material is the limiting factor in the pipe. Manufacturers guarantee 50 years at 70°C. At 20°C, the lifespan exceeds 100 years. PEX-EVOH pipes follow standard PEX aging curves.

EVOH layer durability

The EVOH barrier is embedded between PEX layers. It is protected from external damage. It does not degrade or lose barrier properties. PEX-EVOH pipes maintain their oxygen barrier for decades.

Temperature effect on lifespan

Cold water (20°C): 100+ years expected service life. Warm water (50°C): 70+ years expected service life. Hot water (70°C): 50 years expected service life. PEX-EVOH pipes lose life at higher temperatures.

Pressure effect on lifespan

Normal pressure (4-6 bar) causes no lifespan reduction. High pressure (10+ bar) accelerates creep deformation. Creep is slow deformation under constant stress. PEX-EVOH pipes should stay below 10 bar for long life.

Example: cold water main in a house

A house uses PEX-EVOH pipes for cold water supply. Water temperature is 15°C constantly. Pressure is 4 bar continuously. PEX-EVOH pipes will likely last 80+ years.

Example: recirculating hot water system

A hotel recirculates hot water at 65°C constantly. The system runs 24 hours a day, 7 days a week. PEX-EVOH pipes may last 30-40 years total. The constant heat ages the plastic faster.

Effect of water quality

Aggressive water (low pH) does not attack PEX directly. It can damage metal components, but not PEX. PEX-EVOH pipes are inert to water chemistry.

Effect of chlorine levels

Chlorine levels above 2 ppm accelerate aging of PEX. This is true for all PEX types. Cross-linked Polyethylene – Ethylene Vinyl Alcohol Copolymer pipes should avoid high chlorine exposure.

Manufacturing quality impact

High-quality PEX type 3 lasts much longer in service. Cheap Chinese PEX may fail in only 10 years. Cross-linked Polyethylene – Ethylene Vinyl Alcohol Copolymer pipes from reputable brands are worth the cost.

Signs of aging

PEX discolors from white to yellow or brown over time. Crazing (tiny surface cracks) indicates aging. The pipe becomes stiffer and less flexible. Cross-linked Polyethylene – Ethylene Vinyl Alcohol Copolymer pipes show visible signs before final failure.

Final lifespan summary

PEX-EVOH pipes typically last 50 years or more. Cold water systems reach 80+ years easily. Hot water at 70°C gives 50 years. High temperatures (90°C+) reduce to 15 years. Good water quality extends lifespan. Choose quality brands for maximum life. The EVOH barrier remains intact for decades. Example: one of the longest-lasting piping options available.
