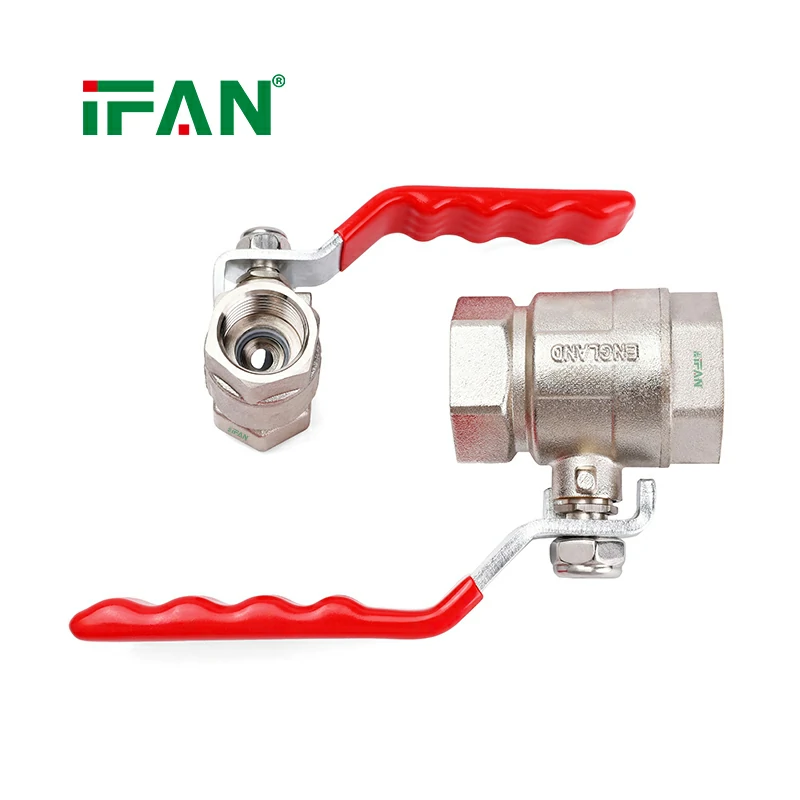

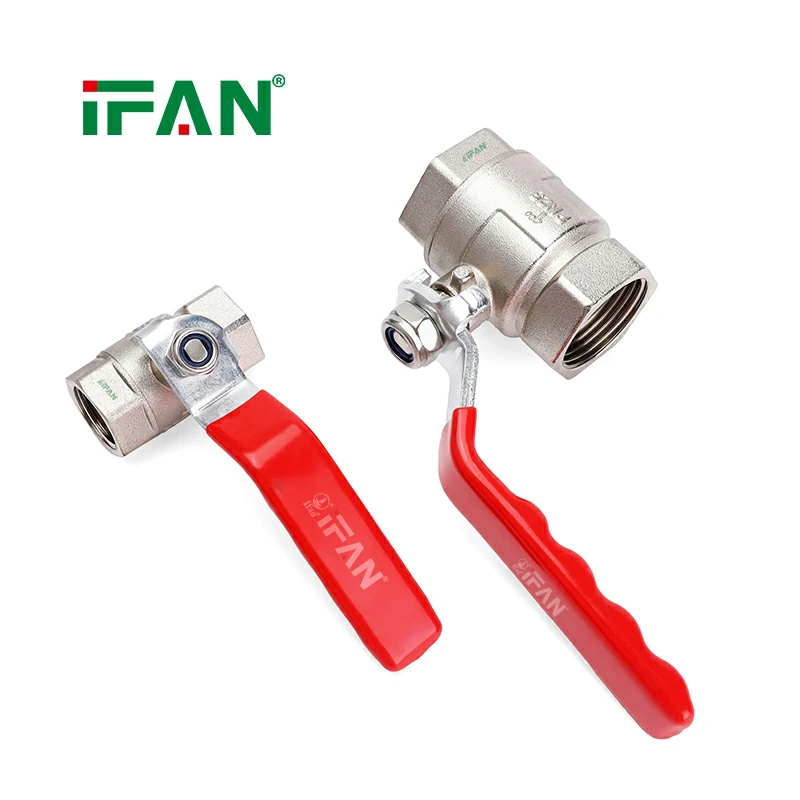

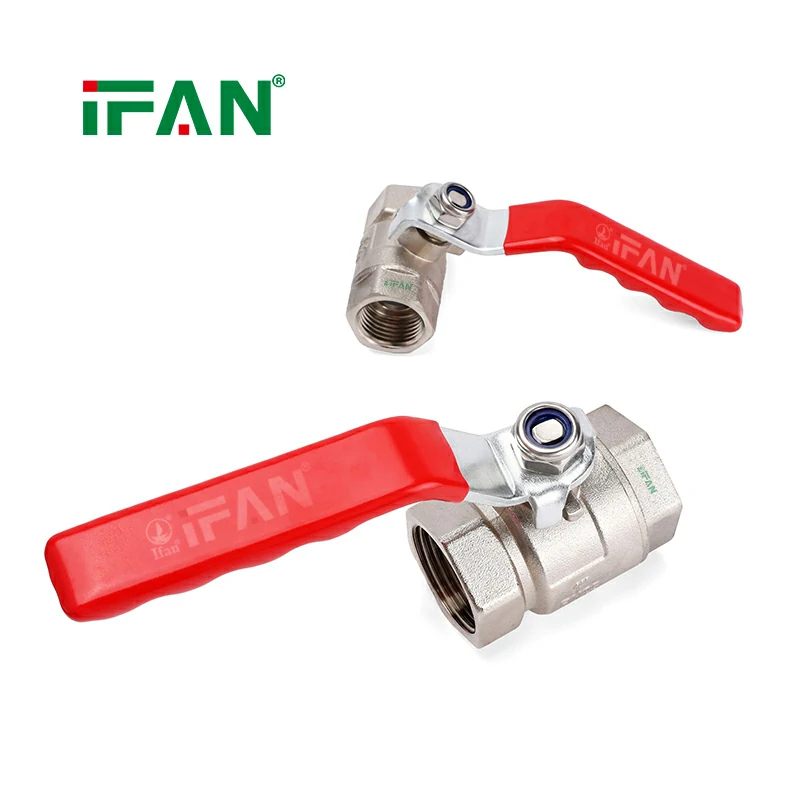

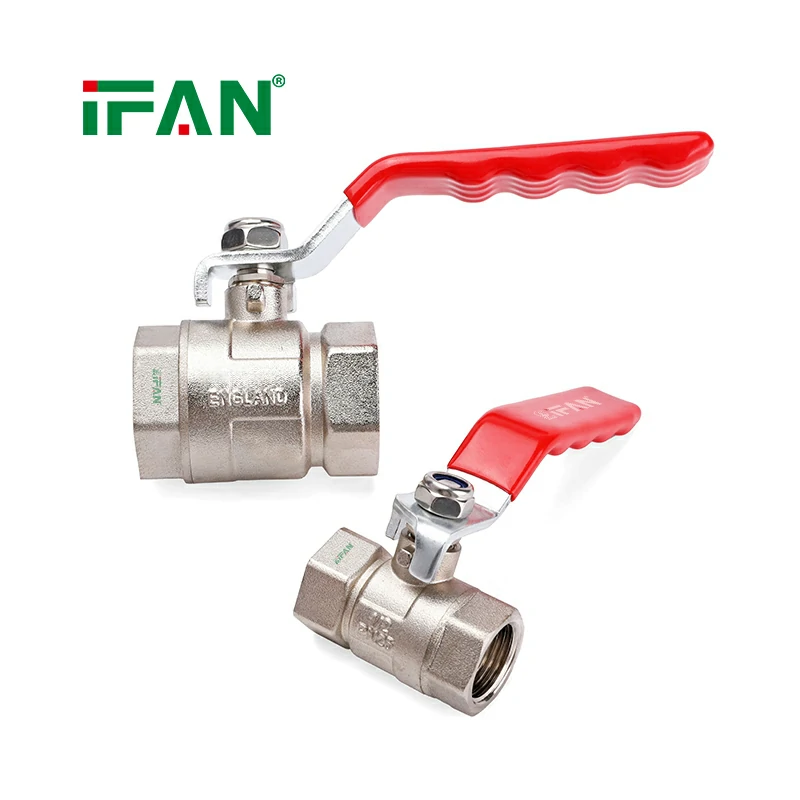

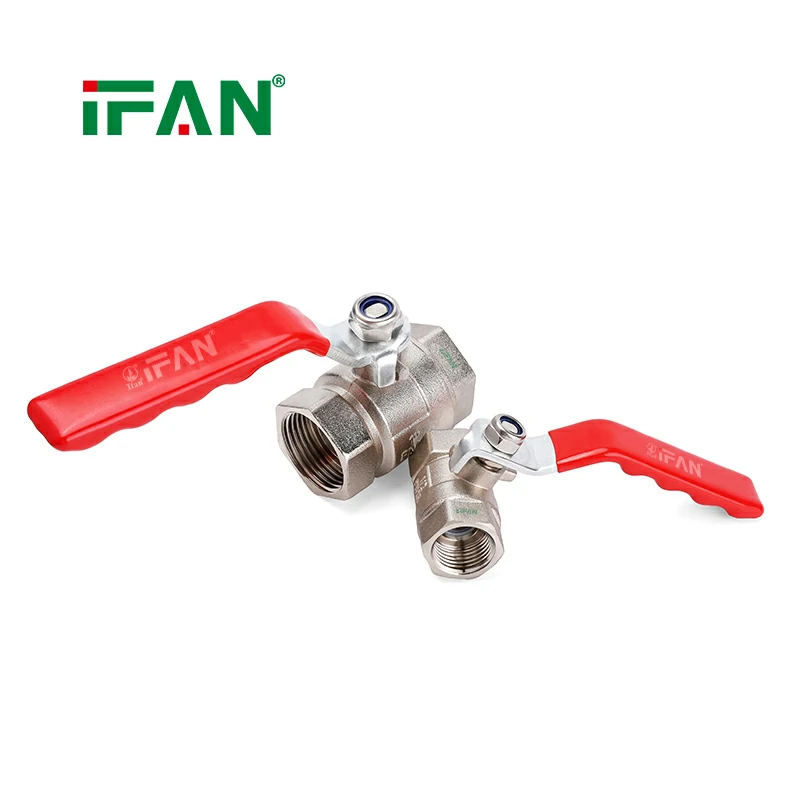

IFAN High-Durable Brass Ball Valves

Understanding Brass as an Alloy

Brass is an alloy of copper and zinc. The ratio of these metals varies. This affects the material’s properties. Standard brass contains around 30-40% zinc. This composition offers good strength and machinability. However, it also creates a vulnerability.

General Corrosion Resistance of Brass

Brass ball valves resist many types of corrosion. They do not rust like carbon steel. They withstand fresh water and mild chemicals. They perform well in indoor plumbing systems. Their surface forms a protective patina. This layer slows further corrosion.

The Dezincification Phenomenon

Dezincification is a specific corrosion type. It affects brasses with high zinc content. Zinc leaches out of the alloy selectively. This leaves behind a porous copper structure. The material loses its strength. It becomes weak and brittle.

Conditions That Cause Dezincification

Certain environments accelerate dezincification. Stagnant or low-flow water is a risk. Aggressive water with low pH is problematic. High temperatures also speed the process. Chlorides and other ions contribute. Brass ball valves in these conditions are vulnerable.

Standard Brass vs. DZR Brass

Dezincification-resistant (DZR) brass is different. It contains small amounts of arsenic or antimony. These additives stabilize the alloy. They prevent the selective leaching of zinc. DZR brass is required for potable water systems. It is also used in many industrial applications.

Visual Signs of Dezincification

A dezincified valve has distinctive appearance. The surface becomes pink or reddish. This is the remaining copper. The material may feel spongy or soft. Cracks and pinholes may appear. Brass ball valves showing these signs have failed.

Testing for Dezincification Resistance

Manufacturers test for DZR certification. ISO 6509 is a common standard. Valves are exposed to copper chloride solution. The depth of dezincification is measured. Passing the test requires minimal penetration. This ensures long-term reliability.

Applications Where DZR is Essential

DZR brass is mandatory for many uses. Potable water systems require it. Hot water applications need it. Aggressive water supplies demand it. Seawater exposure requires DZR. Brass ball valves for these applications must be DZR-rated.

Corrosion from Other Sources

Dezincification is not the only risk. Stress corrosion cracking can occur. This happens in specific chemical environments. Ammonia is a known culprit. Galvanic corrosion occurs with dissimilar metals. Proper installation prevents many of these issues.

Comparing Brass to Other Materials

Stainless steel is more corrosion-resistant overall. However, it is more expensive. Plastic valves are immune to dezincification. But they have lower strength and temperature limits. Brass ball valves offer a balanced compromise. DZR brass bridges the performance gap.

Extending Valve Lifespan

Proper installation extends service life. Avoid stagnant water conditions. Maintain appropriate water chemistry. Use dielectric unions with dissimilar metals. Inspect valves periodically for signs of corrosion. Replace any valve showing dezincification.

Manufacturer Certifications and Markings

Reputable brass ball valves carry markings. Look for “DZR” or “CR” on the body. NSF/ANSI 61 certification is for potable water. These marks indicate proper alloy selection. Unmarked valves may be standard brass. They are not suitable for aggressive water.

Conclusion on Resistance Properties

Brass ball valves have good general corrosion resistance. However, standard brass is vulnerable to dezincification. DZR brass solves this problem effectively. For potable water and aggressive environments, use DZR-rated valves. Proper material selection ensures long, reliable service life. Regular inspection helps detect early signs of failure.
