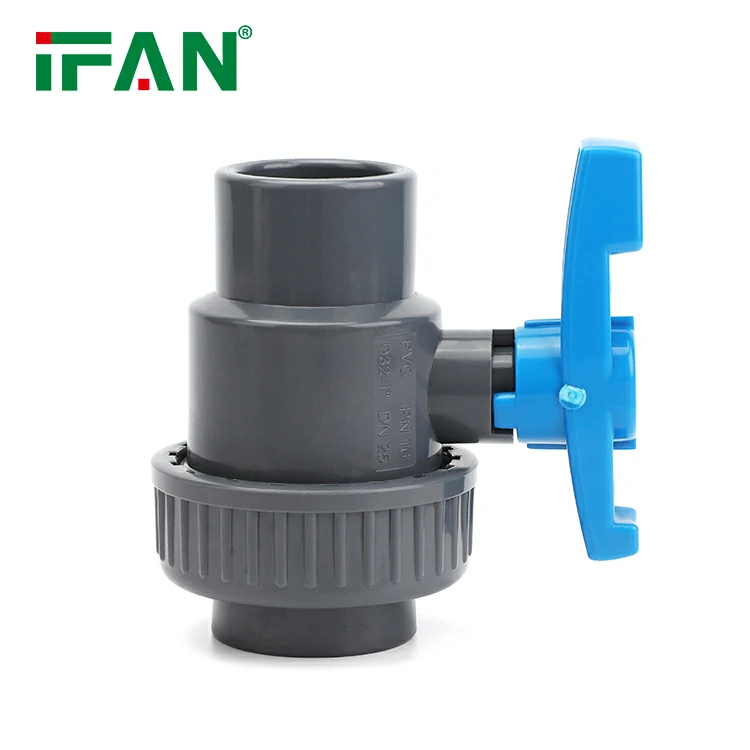

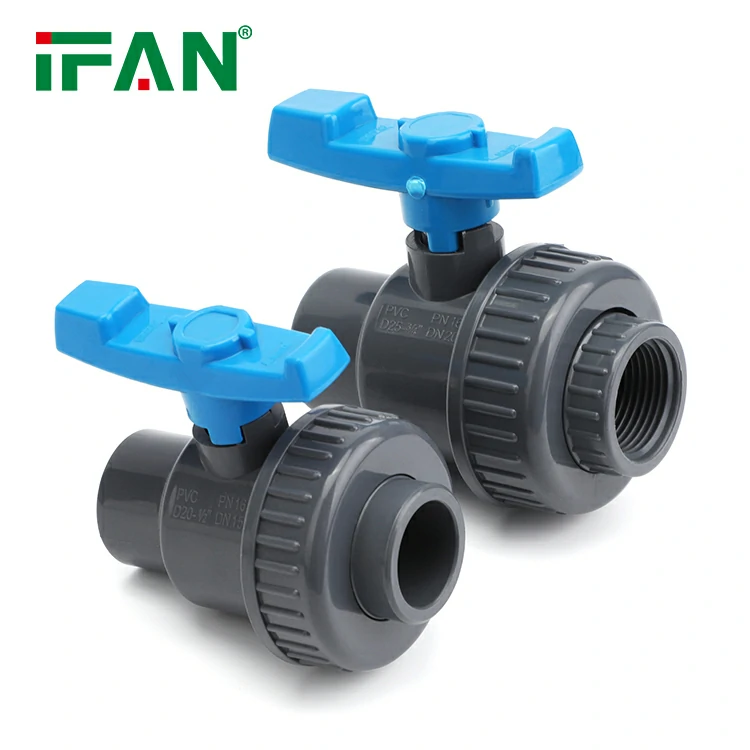

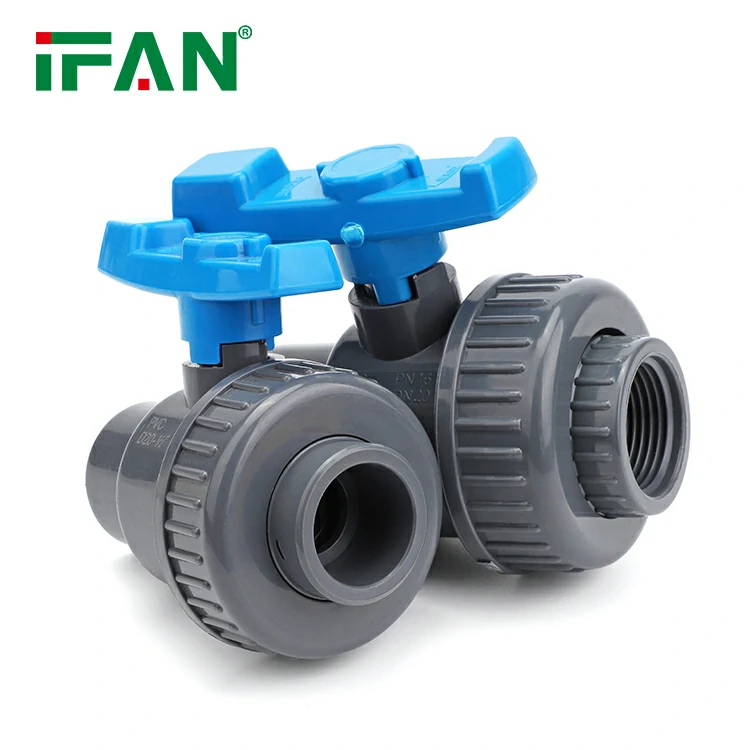

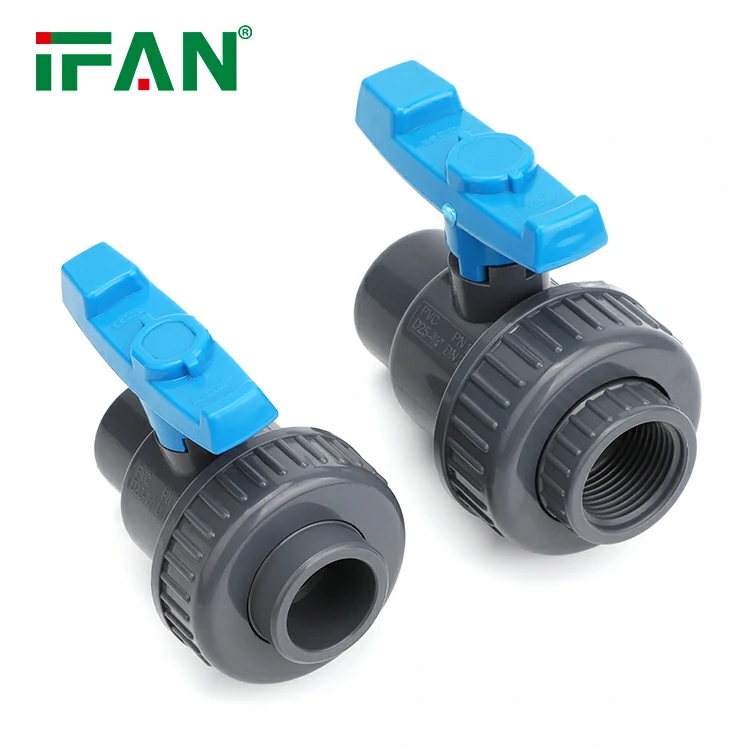

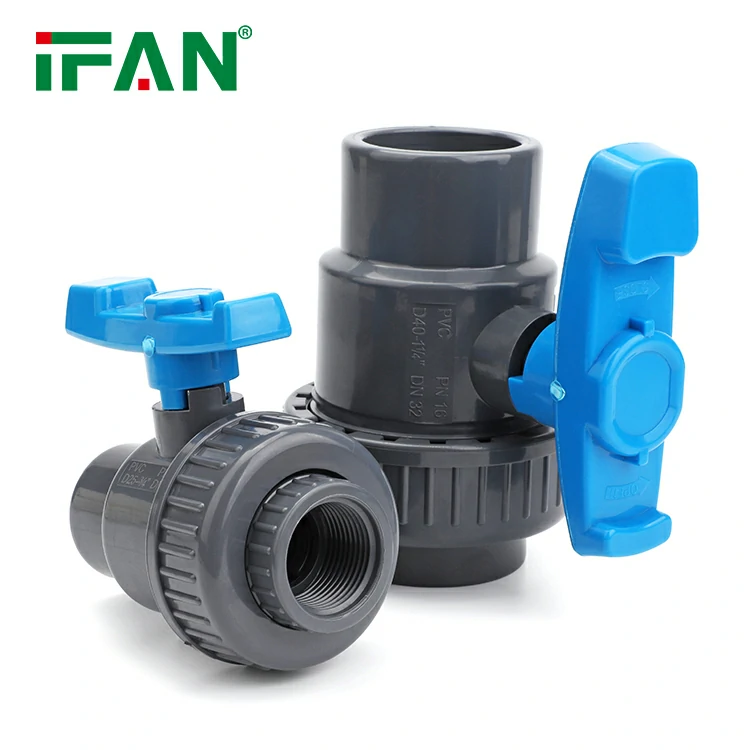

IFAN OEM PVC Single Union Ball Valves

Understanding the Valve’s Design

A PVC Single Union Ball Valve has two distinct ends. One end is a union connection. This end has threaded nuts. The other end is a standard socket. This socket is designed for solvent welding. The valve cannot be taken apart at the union. You must install it as a single unit.

The Solvent Weld End

One side is meant for permanent connection. This is the solid socket end. You must glue this end to the pipe. This creates a strong, permanent bond. The glue is actually a chemical solvent cement. It melts the PVC surfaces together. This fusion makes a leak-proof joint.

The Union Connection End

The other side is the union. This is a mechanical connection. It uses a large nut and a plastic seat. An O-ring provides the seal here. You should never apply glue to this side. Glue would ruin the O-ring and the mechanism. This side is designed for disassembly.

Gluing the Socket End

You must glue the socket end. This fixes the valve body in the line. Prepare the pipe and socket properly. Clean them with PVC cleaner primer. Then apply a coat of solvent cement. Quickly insert the pipe and give a quarter turn. Hold it firm for a few seconds. This creates the permanent joint.

Assembling the Union End

The union end is different. First, slide the large nut onto the pipe. Then, slide the union seat onto the pipe. Now, glue a separate union adapter fitting. This adapter gets solvent-welded to the pipe. Finally, you assemble the nut and seat to it. This creates the serviceable connection.

Step-by-Step Installation Process

First, plan your system layout. Identify which side needs future service. This side should get the union connection. Solvent weld the socket end into the line. Then, prepare the pipe for the union adapter. Glue the adapter onto that pipe. Hand-tighten the large union nut firmly.

Tools and Materials Needed

You need specific items for this job. You will need PVC solvent cement. PVC primer is also essential. Have a tube cutter or fine-toothed saw. You need two adjustable wrenches. These are for tightening the union nut. Always wear safety glasses for protection.

Common Installation Mistakes

A common error is gluing the wrong part. Never glue the union nut or seat. Another mistake is forgetting the nut order. Always slide the nut on the pipe first. Over-tightening the union nut can crack it. Overtightening can also damage the O-ring seal. Follow instructions carefully.

Testing the Installation

Let the solvent-welded joints cure fully. This usually takes several hours. Then, you can pressurize the system. Check both the glued joint and the union. Look for any signs of water dripping. If the union leaks, tighten the nut slightly. A glued joint should not leak at all.

Maintenance and Disassembly

The union allows for easy removal. To remove the valve, shut off the water. Use two wrenches to loosen the union nut. One wrench holds the valve body. The other turns the nut. You can now slide the valve out. The glued end remains permanently fixed.

Advantages of This Design

This design offers the best of both worlds. It provides a permanent, strong connection. It also allows for easy serviceability. You can replace a PVC Single Union Ball Valves quickly. There is no need to cut any pipe. This saves a significant amount of time and money.

Final Recommendation

Yes, you must glue part of the valve. The solid socket end requires solvent cement. The union end must remain glue-free. This correct installation ensures proper function. Your PVC Single Union Ball Valves will be secure and serviceable. Always follow the manufacturer’s specific guidelines for best results.
