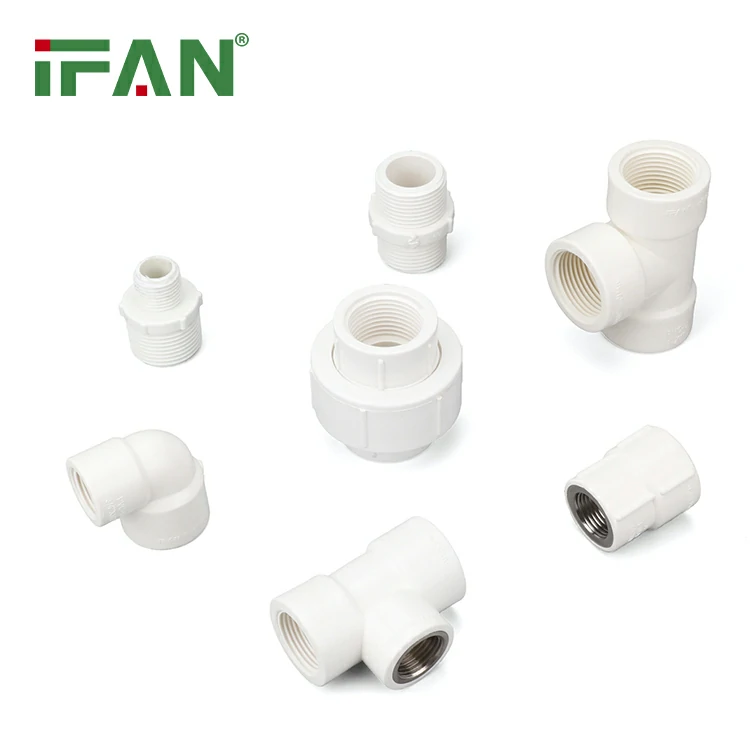

IFAN White UPVC Pipe Fittings

Standard Angle Variations in UPVC Fittings

UPVC pipe fittings are manufactured in multiple standard angles to accommodate various piping layouts. The most common angles include 45° and 90° elbows, which cover the majority of directional changes in plumbing systems. These standard angles allow for efficient fluid flow while minimizing pressure drops. Manufacturers typically produce these fittings in sizes ranging from ½ inch to 12 inches.

90-Degree Elbows: The Most Common Angle

The 90° elbow represents the workhorse of UPVC pipe fittings, enabling perpendicular direction changes. This fitting comes in both short-radius and long-radius versions. Short-radius elbows create tighter turns for space-constrained installations, while long-radius elbows offer smoother flow characteristics. These fittings are essential for connecting vertical and horizontal pipe runs in drainage systems.

45-Degree Elbows for Gradual Direction Changes

When less severe directional adjustments are needed, 45° UPVC elbows provide an optimal solution. These fittings create a gentler bend that reduces turbulence and maintains better flow rates than 90° elbows. They’re particularly useful in pressurized systems where minimizing head loss is critical. Many irrigation systems utilize these angled fittings extensively.

Specialty Angles: 22.5° and 60° Options

For unique piping configurations, manufacturers produce UPVC fittings in intermediate angles like 22.5° and 60°. The 22.5° elbow helps make subtle course corrections in long pipe runs, while the 60° version serves as a compromise between 45° and 90° fittings. These specialty angles are commonly used in complex industrial piping layouts.

Adjustable Angle Fittings for Custom Applications

Some UPVC systems incorporate adjustable angle connectors that can be set to various degrees. These flexible fittings feature a swivel mechanism that locks at desired angles between 0° and 90°. While not as common as fixed-angle fittings, they provide valuable flexibility for retrofit projects or irregular installations.

Three-Way and Four-Way Angled Fittings

Multi-directional UPVC fittings combine multiple angles in single components. Tee fittings create 90° branches, while wye fittings typically form 45° or 60° branch connections. Cross fittings combine multiple 90° angles for complex distribution points. These multi-angle fittings are essential for creating branching networks in drainage systems.

Angle Considerations for Different Applications

The optimal angle selection depends on the specific application. Pressure systems typically use 45° elbows to maintain flow, while drainage systems often employ 90° fittings for compact layouts. Industrial processes may require custom angles to accommodate equipment configurations. Proper angle selection affects both system performance and installation efficiency.

Manufacturing Standards for Angle Consistency

UPVC pipe fittings must conform to strict angle tolerances per international standards like ASTM D2466 and ISO 3633. These specifications ensure consistent performance across manufacturers. Quality fittings maintain precise angles within ±1° of nominal values, guaranteeing proper alignment during installation. Standardized angles facilitate compatibility between different piping system components.
