Why Correct Sizing Matters

Choosing the right size is not optional. It is critical for a leak-free system. An undersized pipe causes poor pressure. An oversized pipe wastes material and money. PPR water pipe fittings must match the pipe exactly. A mismatch will cause system failure.

Understanding the Measurement System

PPR is a metric system. Sizes are measured in millimeters (mm). Common residential sizes are 20mm, 25mm, and 32mm. Commercial systems go up to 110mm or more. The size refers to the pipe’s outer diameter (OD). This is a fixed, standardized dimension.

Common Residential Sizes

For most homes, 20mm is the standard choice. This serves sinks, showers, and toilets well. A 25mm pipe is for main household lines. A 32mm pipe suits high-flow areas or larger homes. These sizes handle typical residential pressure and volume.

SDR and Wall Thickness

The outer diameter alone does not tell the full story. The wall thickness matters just as much. SDR means Standard Dimension Ratio. It is the OD divided by the wall thickness. A lower SDR number means a thicker, stronger wall.

Reading SDR and Pressure Ratings

The SDR value directly affects performance. An SDR 7.4 pipe has a thick wall. It handles high pressure well. An SDR 11 pipe has a thinner wall. It is for lower pressure systems. PPR water pipe fittings must match the pipe’s SDR class for a proper fusion weld.

Standard Pressure Classes (PN Ratings)

PPR pipes and fittings are grouped by PN ratings. PN stands for Pressure Nominal (in bars). Common ratings are PN10, PN16, PN20, and PN25. PN20 is standard for residential hot water. PN25 is for higher-pressure industrial systems.

Matching Pressure to Application

A PN10 fitting may work for cold garden water. It is not safe for a high-rise building. PN20 is ideal for standard home plumbing. PPR water pipe fittings must meet or exceed system pressure. Consider water hammer and temperature effects. When in doubt, choose a higher PN rating.

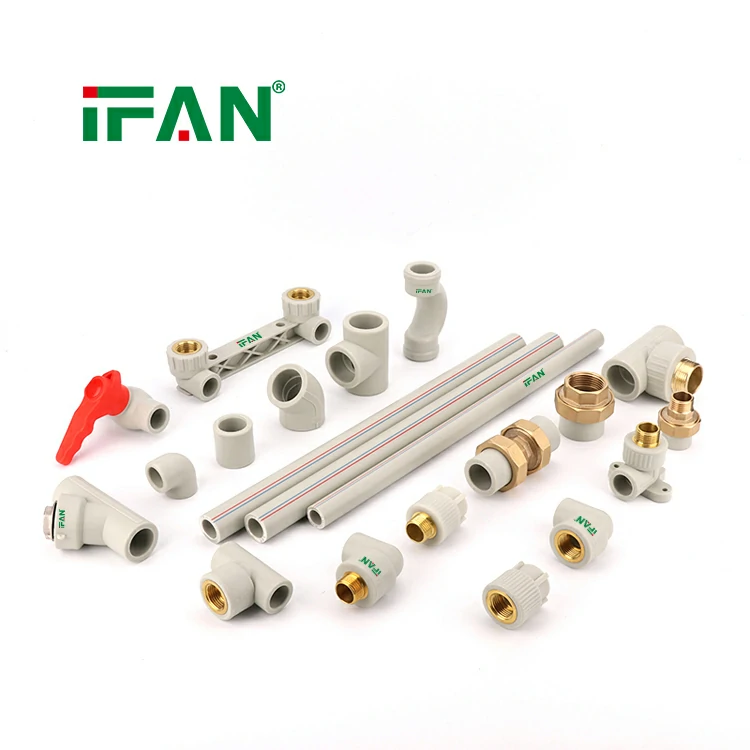

Fitting Types and Their Metrics

Elbows, tees, and couplings are common fitting types. Elbows change pipe direction. Tees create branch lines. Reducers connect pipes of different diameters. Each fitting’s size must match the pipe’s OD. This ensures a seamless fusion weld.

Step 1: Measure the Pipe Accurately

Do not guess the size. Use a caliper to measure the pipe’s outer diameter. Common sizes are 20mm, 25mm, and 32mm. A 20mm OD pipe needs a 20mm fitting. There is no “close enough” in PPR plumbing.

Step 2: Identify the System Pressure

Check your water pressure or system design. A standard home uses PN16 or PN20 fittings. A high-rise building may need PN25. PPR water pipe fittings have the PN rating printed on them. Match this to your system’s requirements.

Step 3: Determine the Required Flow Rate

Think about how much water you need. A single bathroom uses less than two. A main supply line uses more than a branch line. Larger pipes carry more volume. A 32mm main line is common for houses. A 20mm branch line serves a single sink perfectly.

Examples of Size Selection

A kitchen sink needs a 20mm supply line. A whole house might need a 25mm or 32mm main. A tee connection for two bathrooms uses 32mm in and two 20mm outs. A washing machine typically uses a 20mm cold water feed. These examples guide your selection.

Tools for Accurate Sizing

A caliper is the best tool for measuring OD. A pipe cutter ensures clean, square cuts. The heating dies on your fusion welder must match the fitting size. Using the wrong die ruins the joint. Double-check all tools before starting.

Common Sizing Mistakes

Never use a smaller fitting on a larger pipe. Do not force a PN10 fitting on a PN20 system. Ignoring the SDR rating is a common error. These mistakes cause leaks and burst pipes. PPR water pipe fittings are not forgiving of mismatches.

Conclusion on Size Selection

Choosing the right size for PPR water pipe fittings is a precise task. Match the outer diameter perfectly. Match the SDR and PN rating to your system. Consider flow rate and application type. When all three match, the fusion weld is safe. The system will last for decades without leaks.
