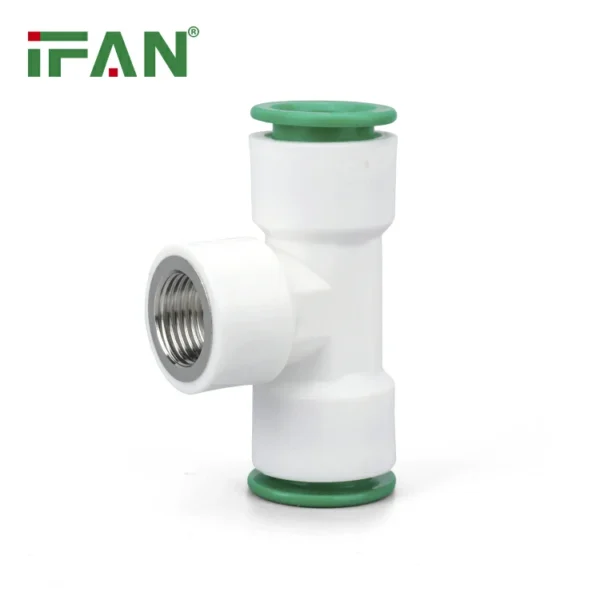

IFAN PPR Push Tee Fittings

IFAN PPR Push Tee Fittings are a specific type of fitting designed for use with Polypropylene Random Copolymer (PPR) pipes. These fittings are used to create a branching point in a piping system, allowing you to connect three pipes at a T-junction.

Key Features

1. Material:
   • Made from high-quality PPR (Polypropylene Random Copolymer), which provides excellent resistance to corrosion, high temperatures, and chemicals.
   • Suitable for both hot and cold water systems, ensuring long-term durability without degradation.
2. Push-fit Technology:
   • The push-fit design allows the pipe to be easily inserted into the fitting, creating a secure connection. No welding, gluing, or special tools are required for installation.
   • It uses an internal O-ring or seal mechanism to ensure a tight and leak-free connection.
3. Simple Installation:
   • No welding: Unlike traditional fittings that require heat welding or solvent cement, IFAN PPR push tee fittings can be installed by simply pushing the PPR pipe into the fitting.
   • Faster Setup: Saves installation time by eliminating the need for complex procedures.
   • No Tools Required: Typically, only basic tools like a pipe cutter are required to prepare the pipe ends. The fittings can be connected by hand.
4. Durability and Reliability:
   • IFAN PPR fittings are designed for long-term use, resisting damage from pressure, temperature, and external factors. They have a long service life in both residential and commercial plumbing systems.
   • Suitable for hot water systems (up to 95°C or 203°F) and can also handle pressures up to 25 bar (depending on the specific product).
5. Leak-Proof:
   • The fittings are designed with a sealing mechanism that ensures a reliable, leak-proof connection between the pipes.
6. Applications:
   • Water Distribution: Used to branch out water systems, either for hot or cold water.
   • Heating Systems: Works well in underfloor heating, central heating, and other PPR-based installations.
   • Industrial and Commercial Use: Can be used in various industrial systems that require fluid or air transport.
7. Design Options:
   • Available in different configurations, including 90° or 45° tees, but the standard is usually the straight tee for creating T-junctions.

Benefits

1. Time-Saving: The push-fit mechanism eliminates the need for complex installation steps, reducing the overall installation time.
2. No Special Tools Required: Unlike welded PPR systems, no hot tools or adhesives are needed, making them easier and safer to install.
3. Corrosion Resistance: The PPR material is highly resistant to corrosion, which helps to maintain water quality over time, especially in systems that are used for potable water.
4. Environmentally Friendly: Since the push-fit process doesn’t require solvents or adhesives, the fittings are more environmentally friendly than traditional alternatives.
5. Versatile: Ideal for a range of applications, from residential plumbing to more complex industrial systems.

Installation Tips:

1. Preparation of Pipe Ends:
   • Cut the PPR pipes squarely to ensure the best fit into the fitting.
   • Deburr the pipe ends to remove any sharp edges, which could cause damage or leaks.
2. Insert the Pipe into the Fitting:
   • Simply push the PPR pipe firmly into the push tee fitting. You may hear a slight “click” or feel resistance as the pipe engages with the O-ring inside the fitting.
3. Check for Leaks:
   • After installation, it’s always a good idea to test the system with water or air pressure to check for leaks.
4. Cleanliness: Ensure that the pipe ends and the interior of the fitting are free from dirt, debris, or moisture before installation.

Summary:

IFAN PPR push tee fittings offer a quick, reliable, and cost-effective solution for branching pipes in PPR-based systems. Their easy installation, durability, and leak-proof design make them a popular choice for both professional plumbers and DIY installers alike. Whether used for water distribution, heating systems, or other industrial piping, these fittings provide a long-lasting, hassle-free connection.
