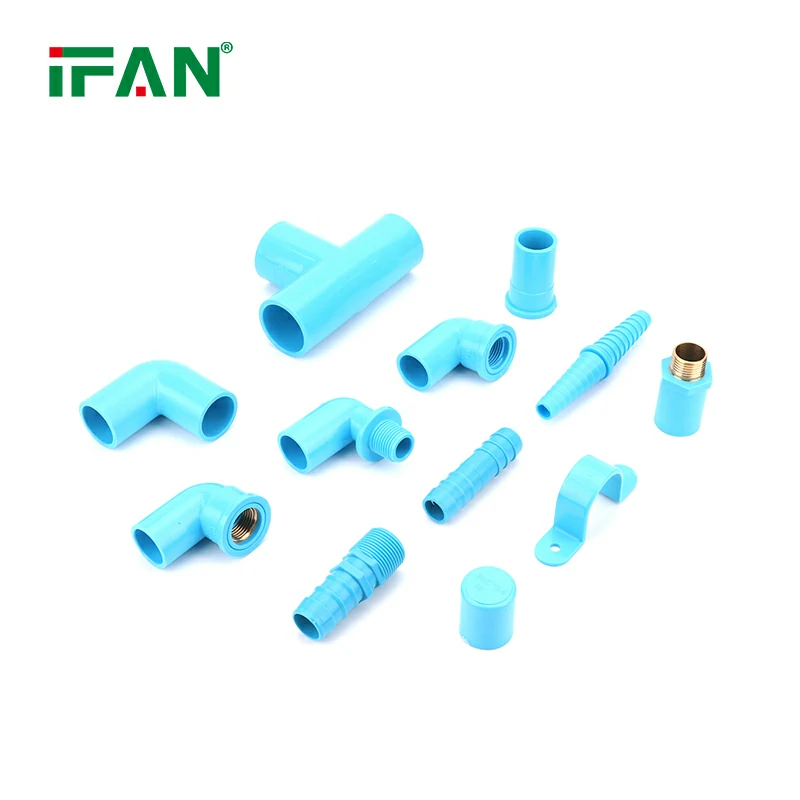

IFAN Direct Sell TIS PVC fittings

This is a fundamental plumbing question. The answer is nominal, based on OD. TIS PVC fittings use a sizing system tied to outer diameter. This ensures compatibility with corresponding pipes. Understanding this is key for a proper fit.

Understanding Nominal Pipe Sizing (NPS)

Pipe and fitting sizes are “nominal.” They are approximate, not exact measurements. A “1-inch” fitting is not 1 inch inside or outside. The name is a convenient label. This system is used for TIS PVC fittings and pipes.

The Dominance of Outer Diameter (OD)

The critical dimension is the outer diameter. The OD is controlled and standardized. A 1-inch TIS PVC fittings has a specific OD. The matching 1-inch pipe has the same OD. This allows for a perfect socket connection.

Why OD is the Standard for Solvent Welding

Solvent welding relies on socket fittings. The pipe’s OD fits into the fitting’s socket ID. A consistent OD is absolutely essential. It ensures a uniform gap for the cement. This creates a strong, reliable bond.

The Variability of Inner Diameter (ID)

The inner diameter is not the primary standard. It can vary depending on the schedule. Schedule 80 has a thicker wall than Schedule 40. Therefore, its inner diameter is smaller. The OD, however, remains constant for a given nominal size.

Identifying Size on the Fitting Itself

TIS PVC fittings are clearly marked. You will see a size like “1/2″ ” or “DN20”. This refers to the nominal size. It corresponds to a standardized outer diameter. The actual OD is not typically printed on the fitting.

Comparing Pressure and DWV Fittings

This OD-based system applies to pressure fittings. DWV (Drain, Waste, Vent) fittings also use it. Their sizing is similarly nominal. The focus remains on the outer diameter for joining. This maintains consistency across applications.

The Role of SDR in Pipe Dimensions

SDR (Standard Dimension Ratio) defines wall thickness. SDR = OD / Wall Thickness. A lower SDR means a thicker wall. The nominal size and OD stay the same. The inner diameter changes with the SDR.

Practical Example: 1-Inch Fitting and Pipe

A nominal 1-inch Schedule 40 PVC pipe. Its OD is approximately 1.315 inches. Its ID is roughly 1.049 inches. A 1-inch TIS PVC fittings has a socket designed for a 1.315-inch OD pipe. The IDs are not the matching factor.

Consequences of Misidentification

Mixing ID and OD thinking causes errors. You cannot join pipes based on inner diameter. A pipe with the correct ID but wrong OD will not fit. This is a common mistake for beginners. Always think about the outer diameter.

Tools for Measuring PVC Fittings

Use a caliper for accurate measurement. Measure the inside of a fitting socket. This gives you the required pipe OD. Measure the outside of a pipe. Confirm it matches the fitting’s socket.

Conclusion: Always Focus on OD

TIS PVC fittings are measured nominally by outer diameter. The OD is the consistent, controlled dimension. It is the foundation of a reliable solvent-weld joint. Remembering this simple rule prevents installation problems. Always select pipes and fittings based on their matching nominal size, which corresponds to a standardized OD.
